Arduino Temperature Sensor

Temperature is very important when creating dyes. Let's build an electronic temperature sensor using an arduino so we can check our temperature while creating dyes.

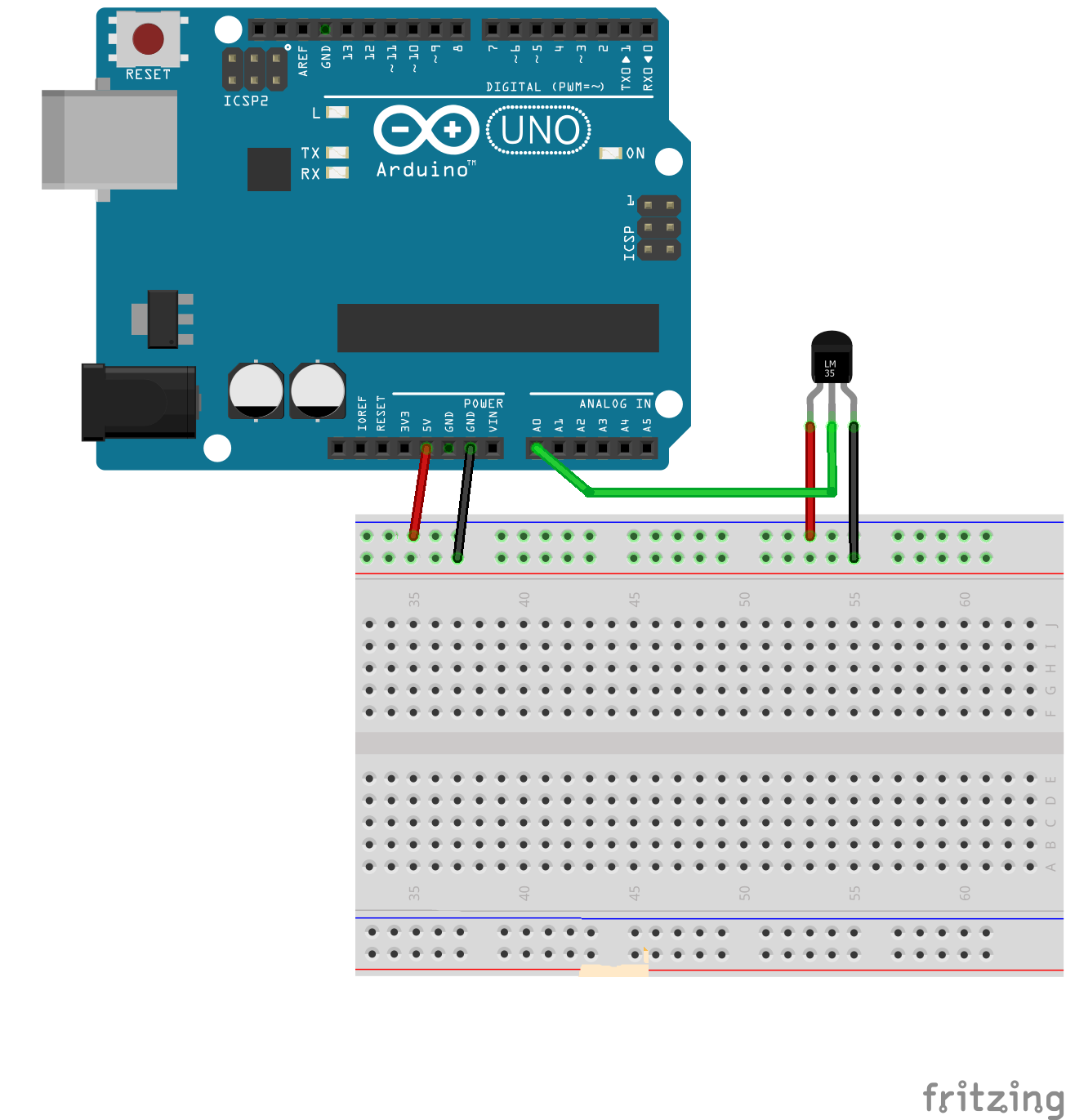

The build diagram for the temperature sensor is below:

The code for the arduino can be downloaded by clicking here. It is also repeated below:

//TMP36 Pin Variables
int sensorPin = 0; //the analog pin the TMP36's Vout (sense) pin is connected to
                        //the resolution is 10 mV / degree centigrade with a
                        //500 mV offset to allow for negative temperatures

/*
    * setup() - this function runs once when you turn your Arduino on
    * We initialize the serial connection with the computer
    */
void setup()
{
    Serial.begin(9600);  //Start the serial connection with the computer
                        //to view the result open the serial monitor
}

void loop()                     // run over and over again
{
    //getting the voltage reading from the temperature sensor
    int reading = analogRead(sensorPin);

    // converting that reading to voltage, for 3.3v arduino use 3.3
    float voltage = reading * 5.0;
    voltage /= 1024.0;

    // print out the voltage
    Serial.print(voltage); Serial.println(" volts");

    // now print out the temperature
    float temperatureC = (voltage - 0.5) * 100 ;  //converting from 10 mv per degree wit 500 mV offset
                                                //to degrees ((voltage - 500mV) times 100)
    Serial.print(temperatureC); Serial.println(" degrees C");

    // now convert to Fahrenheit
    float temperatureF = (temperatureC * 9.0 / 5.0) + 32.0;
    Serial.print(temperatureF); Serial.println(" degrees F");
    delay(1000);                                     //waiting a second
}


Now you have a temperature sensor for the production of your dyes!
