Arduino: Simple Sequential LED's

Reproduced from https://www.instructables.com/Arduino-Simple-Sequential-LEDs/

In this instructable, we are going to construct the circuit and write the code to control the state of three LED's sequentially using the Arduino Uno board.

Parts Needed:

  • Arduino Uno
  • Arduino Software (Can be downloaded for free from Arduino)
  • Breadboard
  • Three LED's (any color)
  • Three 330 ohm resistors
  • Wires as needed

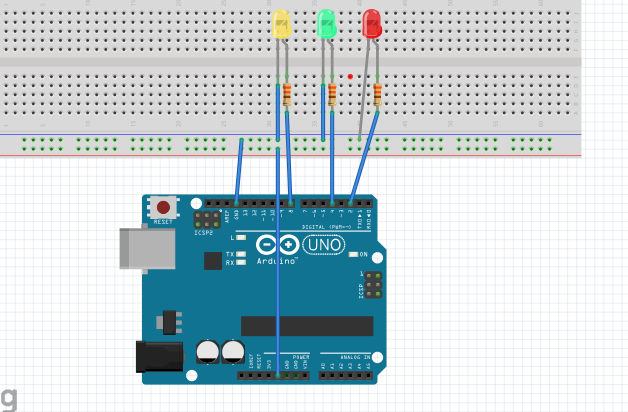

Figure 1 shows the schematics for this project on a breadboard.

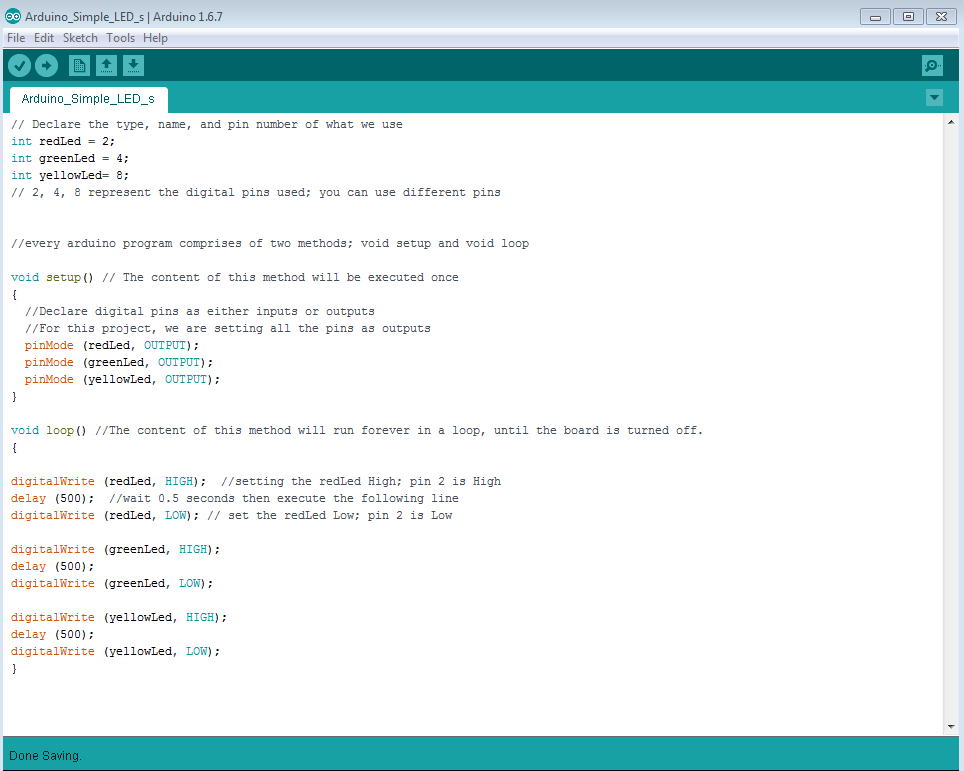

Figure 2 shows the code for this project.

Finally, the attached video is a demonstration of the complete project.
